VF-200 Vibratome

Compresstome® VF-200 Vibrating Microtome

CompresstomeⓇ VF-200 의 특징 :

  • 엔트리급 Compresstome®
  • 전기 생리학 및 이미징 연구를 위한 생체 조직을 얇게 슬라이스하는 데 사용되는 반자동 조직 슬라이서
  • 특허의 슬라이스 기술을 통해 건강한 티슈의 생존 능력을 두 배로 높임
  • 사용자 친화적인 고속의 슬라이싱 작업

VF-200 의 적용 가능 분야 :

  • 전기생리학
  • 기관형배양
  • 폐의 정밀 절단용

VF-200 의 Technical Spec :

 Technical Specification VF-200
Advance Speed 1-20 ㎜/s, adjustable
Return Speed 20 ㎜/s, fixed
Vibration Frequency 0-20 ㎐, adjustable
Vibration Amplitude 2 ㎜, fixed
Z-axis Vibration < 2 ㎛
Blade double edge stainless,
ceramic blades
Cutting Angle 13 degrees,
fixed(standard)
Thickness Adjustment manual
Micrometer Resolution 10 ㎛/div
Maximum Tissue
Diameter
15.5 ㎜(standard tube),
6 ㎜,12.5 ㎜ (small tube)
Maximum Tissue
Length
25 ㎜
Minimum Slice
Thickness
10 ㎛
Cutting Mode Single
Bath 140 x 60 x 30 ㎜
Power Source DC 13-15 V
Power Consumption 500 mW
Dimension ( L x W x H ) 360 x 210 x 190 ㎜
Weight 5 ㎏

Down load  Technical Specification_VF-200

VF-200 부품 :

VF-200  소모품 :

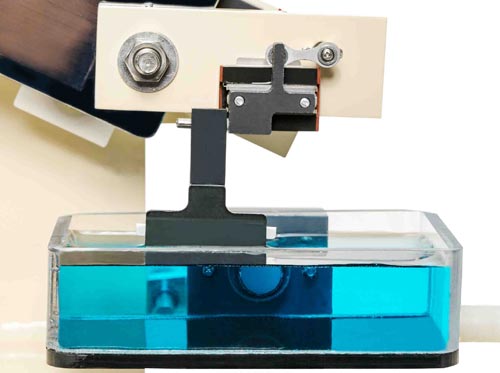

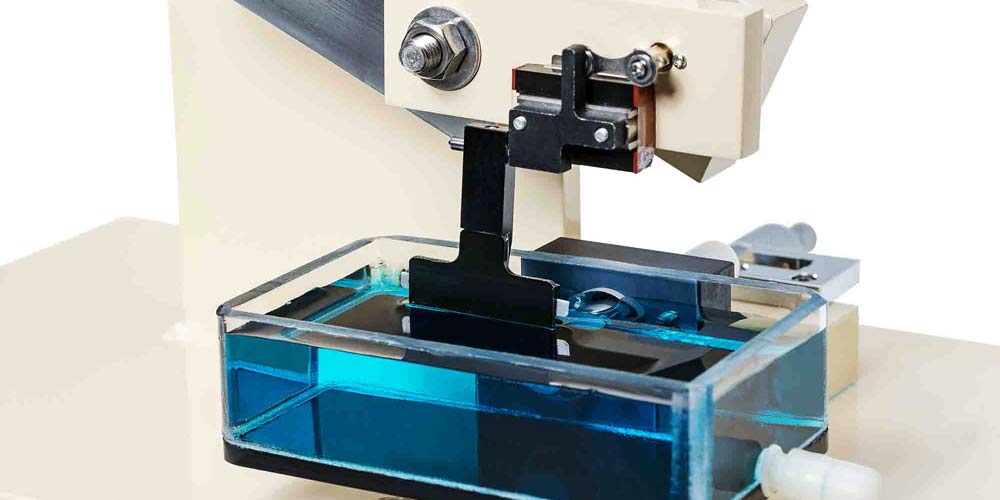

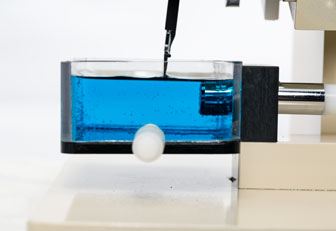

Compresstome® VF-200 vibrating microtome

The VF-200 is our entry level Compresstome®.  With our compression technology, this semi-automated slicer excels at sectioning slices used for:

Our patented slicer technology allows you to double your slice viability for healthier tissue. The Compresstome® produces beautiful sections while providing a fast user-friendly cutting experience. Please refer to our online video tutorials for a step by step visual aid in your Compresstome® experience.

The Compresstome® VF-200 is our best semi-automatic tissue slicer used to section live tissue for electrophysiology and imaging studies. If you are looking to section both fresh and fixed tissue for immunohistochemistry, please explore the VF-300-0Z.

The VF-200 is our semi-automatic tissue slicer most ideal for:

Products we recommend to purchase with VF-200:

To reduce contamination when working with both fresh and fixed tissue we recommend purchasing additional:

Consumables we recommend for quality use include:

Down load  Technical Specification_VF-200
