Filter, Fluorescence

79003

JNOPTIC Filter 79003

ET – Fura 2/TRITC

79003 Spectrum

Filters Type
ET340x EX
ET380x EX
ET555/25x EX
79003bs BS
79003m EM



79003 Spec

  • Typical Application(s) : Widefield Microscopy
  • Coating : Sputter/Hard Coated
  • Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
  • Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)

*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing.

NOTE: sets with multi-band excitation filters are not appropriate for imaging with a monochrome camera.

Filter, Fluorescence

79001

JNOPTIC Filter 79001

ET – Fura 2

79001 Spectrum

Filters Type
ET340x EX
ET380x EX
T400lp BS
ET510/80m EM



79001 Spec

  • Typical Application(s) : Widefield Microscopy
  • Coating : Sputter/Hard Coated
  • Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
  • Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)

*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing.

NOTE: sets with multi-band excitation filters are not appropriate for imaging with a monochrome camera.



Filter, Fluorescence

89403

JNOPTIC Filter 89403

ET – 436-28/506-21/578-24/730-40 Multi LED set

Quad band catalog set for Multi LED light engines like those manufactured by Lumencor, CoolLED, Excelitas and Cairn Research. Excitation passbands are matched to discrete, triggerable LEDs appropriate for excitation of CFP/YFP/RFP/Cy7 and similar fluors. Not intended for use with white light sources.

89403 Spectrum

Filters Type
89403x EX
89403bs BS
89403m EM



89403 Spec

  • Typical Application(s) : Widefield Microscopy
  • Coating : Sputter/Hard Coated
  • Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
  • Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)

*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing.

NOTE: These require the use of filter wheels or sliders, or image-splitting devices to hold multiple individual filters.



Filter, Fluorescence

59217

JNOPTIC Filter 59217

ET – ECFP/EYFP with single band exciters

59217 Spectrum

Filters Type
ET430/24x EX
ET500/20x EX
69008bs  BS
59017m EM



59217 Spec

  • Typical Application(s) : Widefield Microscopy
  • Coating : Sputter/Hard Coated
  • Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
  • Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)

*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing.

NOTE: sets with multi-band excitation filters are not appropriate for imaging with a monochrome camera.



Filter, Fluorescence

59222

JNOPTIC Filter 59222

ET – EGFP/mCherry (or FITC/TxRed) with single band exciters

59222 Spectrum

Filters Type
ET470/40x EX
ET572/35x EX
59022bs  BS
59022m EM



59222 Spec

  • Typical Application(s) : Widefield Microscopy
  • Coating : Sputter/Hard Coated
  • Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
  • Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)

*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing.

NOTE: sets with multi-band excitation filters are not appropriate for imaging with a monochrome camera.



Filter, Fluorescence

59017

JNOPTIC Filter 59017

ET – ECFP/EYFP

59017 Spectrum

Filters Type
59017x EX
69008bs BS
59017m EM



59017 Spec

  • Typical Application(s) : Widefield Microscopy
  • Coating : Sputter/Hard Coated
  • Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
  • Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)

*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing.

NOTE: sets with multi-band excitation filters are not appropriate for imaging with a monochrome camera.

Filter, Fluorescence

59022

JNOPTIC Filter 59022

ET – EGFP/mCherry (or FITC/TxRed)

59022 Spectrum

Filters Type
59022x EX
59022bs BS
59022m EM



59022 Spec

  • Typical Application(s) : Widefield Microscopy
  • Coating : Sputter/Hard Coated
  • Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
  • Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)

*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing.

NOTE: sets with multi-band excitation filters are not appropriate for imaging with a monochrome camera.



Filter, Fluorescence

89400

JNOPTIC Filter 89400

ET – DAPI/FITC/TRITC/Cy5 Quad with Single Band Exciters

A version of the 89000 Quad set with a quad band emisison filter and four individual excitation filters for use in an external filter housing such as a filter wheel, similar to Chroma’s original Pinkel filter set. Allows for selective excitation of individual fluors in sample containing multiple fluors. Appropriate for live viewing or image acquisition with monochrome or color cameras.

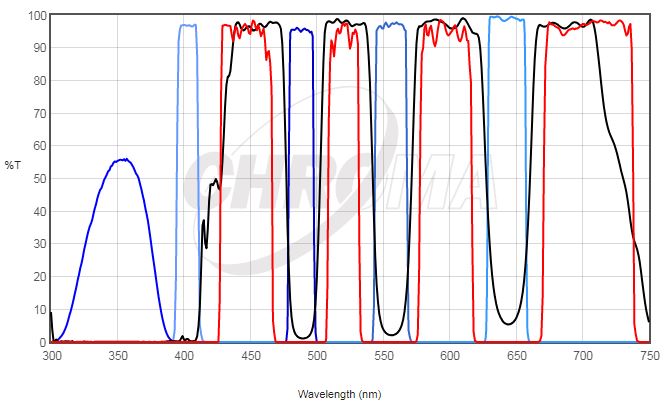

89400 Spectrum

Filters Type
AT350/50x EX
ET402/15x EX
ET490/20x EX
ET555/25x EX
ET645/30x EX
89100bs BS
89101m EM



89400 Spec

  • Typical Application(s) : Widefield Microscopy
  • Coating : Sputter/Hard Coated
  • Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
  • Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)

*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing.

NOTE: These require the use of filter wheels or sliders, or image-splitting devices to hold multiple individual filters.



Filter, Fluorescence

89402

JNOPTIC Filter 89402

ET – 391-32/479-33/554-24/638-31 Multi LED set

Quad band catalog set for Multi LED light engines like those manufactured by Lumencor, CoolLED, Excelitas and Cairn Research. Excitation passbands are matched to discrete, triggerable LEDs appropriate for excitation of DAPI/FITC/TRITC/Cy5 and similar fluors. Not intended for use with white light sources.

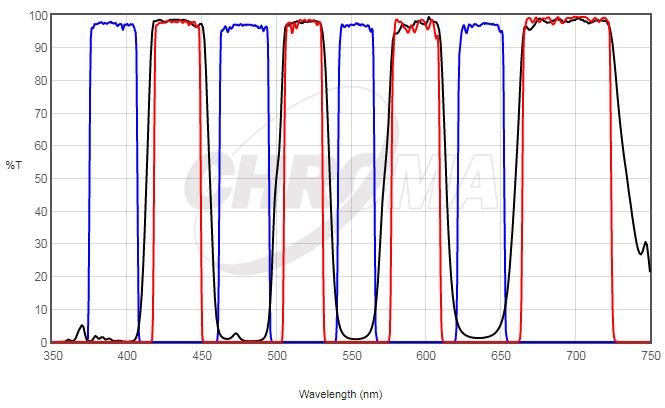

89402 Spectrum

Filters Type
89402x EX
89402bs BS
89402m EM



89402 Spec

  • Typical Application(s) : Widefield Microscopy
  • Coating : Sputter/Hard Coated
  • Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
  • Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)

*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing.

NOTE: These require the use of filter wheels or sliders, or image-splitting devices to hold multiple individual filters.



Filter, Fluorescence

69308

JNOPTIC Filter 69308

ET – ECFP/EYFP/mCherry with single band exciters

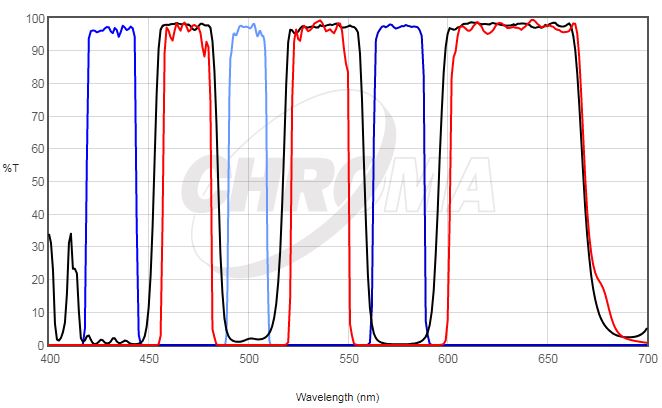

69308 Spectrum

Filters Type
ET430/24x EX
ET500/20x EX
ET577/25x EX
69008bs BS
69008m EM



69308 Spec

  • Typical Application(s) : Widefield Microscopy
  • Coating : Sputter/Hard Coated
  • Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
  • Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)

*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing.

NOTE: sets with multi-band excitation filters are not appropriate for imaging with a monochrome camera.
