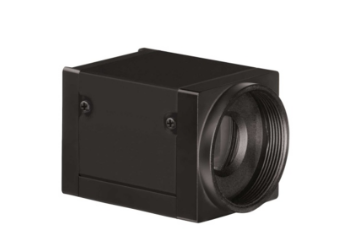

AcquCAM 3G

AcquCAM 3G

Down load Catalog – ACQUCAM 3G

  • USB 3.0 Color Camera
  • 1/1.8 ” Pregius Sensor
  • 2048 x 1536 pixel
  • Trigger input and I/O
  • Cost-effective color camera
  • High Sensitivity Sensor
  • Fast, seamless image transfer
  • Available of images with a very wide field of view
  • Low Noise Sensor

AcquCAM 3G color camera has a USB 3.0 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The color camera ships with the very sensitive 1/1.8 inch CMOS Pregius  sensor. With up to 60 images per second, the AcuqCAM 3G is a low cost, yet highly versatile imaging solution. The camera includes a C to CS mount adapter, making it compatible to C and CS mount lenses. Using the optional CS to M12 board lens adapter, the camera is
also compatible to M12 board lenses.

Images with AcquCAM 3G

Sample : bovine pulmonary artery endothelial cell, BPAEC
Filter Set : JNO-U(B), B(B), G(B)
Camera : AcquCAM 3G
C-mount adapter : 1X
Lens : UPLNAPO40X
Above three images are merged and processed using ARM S/W

Specification

Spec Description
Size 1/1.8 inch
Resolution H: 2048, V: 1536
Pixel size H: 3.45 µm, V: 3.45 µm
Video formats& Frame rate 2048×1536 (3.1 MP) RGB64 @ 60 fps

2048×1536 (3.1 MP) RGB32 @ 60 fps
2048×1536 (3.1 MP) Y16 @ 60 fps

2048×1536 (3.1 MP) Y411 @ 60 fps
2048×1536 (3.1 MP) YUY2 @ 60 fps

Dynamic range 8 / 12 bit
Exposure time 20 ㎲ to 30s
Lens mount C/Cs mount
Interface USB 3.0
Power supply 4.5 to 5.5 VDC
Dimensions H: 29 mm, W: 29 mm, L: 43 mm
Mass 65g

ARM

ARM is image analysis software for JNOPTIC AcquCAM cameras. This S/W is interchangeable with all WDM cameras regardless of camera brand and model and even more the most strength point is simple and easy use of length, area, angle, etc.

-> For more details, click here.

More images with AcquCAM 3G

-> For more details, click here.
