FILM CROSS SECTION -OBSERVATION

필름 단면 관찰 현미경

JNO-FM-BX53-SET

필름 전용 현미경으로 찍은 샘플 사진 (동일 샘플)

– 필름 단면 관찰 영상 –

일반 현미경에서 필름 관찰시 문제점

  • 필름 단면이 고르지 않다.
  • 필름 단면 전체에 초점을 맞추기가 어렵다.
  • 필름이 가늘어서 관찰면을 고정하기가 어렵다.

필름 단면 관찰 전용 현미경의 특징

  • 필름 단면을 고르게 절단 가능하다.
  • 필름 단면이 전체적으로 초점 영역에 맞음
  • 샘플을 관찰하기 편하게 고정하여 관찰 가능
  • 샘플의 회전이 용이하여  원하는 각도를 쉽게 맞출 수 있음.
  • 샘플의 변경시 초점이 거의 변하지 않아 작업이 편함.
  • 투과 반사 조명 모두에 상기의 장점을 모두 활용 가능함.

포장재 필름의 단면 관찰

ACQUCAM 23GR IMAGES

AcquCAM 23GR



More images with AcquCAM 23GR



Sample : bovine pulmonary artery endothelial cell, BPAEC
Filter Set : JNO-U(L), B(L), G(L)
Camera : AcquCAM 23GR2
C-mount adapter : 1X
Lens : UPLNAPO40X
Above three images are merged and processed using ARM S/W



Sample : bovine pulmonary artery endothelial cell, BPAEC
Filter Set : JNO-U(B), B(B), G(B)
Camera : AcquCAM 23GR2
C-mount adapter : 1X
Lens : PlanApo60xWLSM
Above three images are merged and processed using ARM S/W

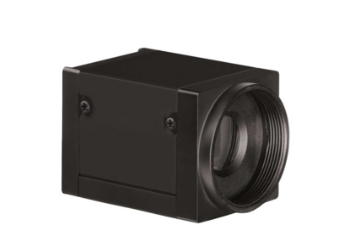

AcquCAM 23GR

AcquCAM 23GR



(Down load Catalog  – ACQUCAM 23GR)



  • USB 3.0 Color Camera
  • 1/1.2 ” Exmor Sensor
  • 1920×1200 pixel
  • Trigger input and I/O
  • Available  of taking images with a wavelength of 650nm or more, such as CY5
  • High Sensitivity Sensor (Best)
  • Fast, seamless image transfer
  • Available of images with a very wide field of view
  • Low Noise Sensor





The displays live digital images with gradual smoothness and combines exceptional resolution  with faithful color reproduction.The new sensors feature a global shutter function and able to capture a high-speed moving image without focal plane distortion. High-speed processing, low noise and low power dissipation by using column-parallel A/D conversion. equipped with trigger mode, and the external pulse can control accumulation time. The Sensor also have a pulse output function to indicate respective conditions during shutter operation and can be coordinated with peripheral circuits. High-definition images can be displayed live at a rate of high frames per second. without compression. Such imaging quality enables even the finest cellular regions to be observed clearly and distinctly without deterioration. While focusing is made stress free.

Images with AcquCAM 23GR



Sample : bovine pulmonary artery endothelial cell, BPAEC
Filter Set : JNO-U(B), B(B), G(B)
Camera : AcquCAM 23GR2
C-mount adapter : 1X
Lens : UPLNAPO40X
Above three images are merged and processed using ARM S/W





JNO-ARM

Advance Realtime Monitor. Easy-to-Use, Image Enhancement, etc



1. Information

ARM is image analysis software for JNOPTIC AcquCAM cameras. This S/W is interchangeable with all WDM cameras regardless of camera brand and model and even more the most strength point is simple and easy use of length, area, angle, etc.



2. Simple measurement tools

  • Measurement Tools: Count, Distance, Angle, Area, etc.
  • Guide Lines: Cross Line, Rectangular Lattice, Circular Grid
  • Scale Panel on Live/Image Screen
  • Available measurement on LIVE image and saved image mode



3-1. Specialization for observation of fluorescence images

Improvement Function about Fluorescence Microscopy Image. (Used function: Auto Level, Low level, Pseudo Color, Merge Image)

Bottom on the left is merged image without improvement of image. And the bottom on the right is merged image after improvement of image. These images are shot by JNOPTIC AcquCAM Pro/G3 camera



3-2-1 Effect of high-contrast image with simple operation (Monochrome)

Improvement Function about Microscopy Image Monochrome. (Used function: Auto Level)

Effective improvement of image with simple operation. This image is shot by JNOPTIC Pro/S3 camera



3-2-2 Effect of high-contrast image with simple operation (Color)

Improvement Function about Microscopy Image. (Used function: Auto Level)

Effective improvement of image with simple operation. These images are shot by JNOPTIC AcquCAM Pro/G3 camera



3-3-1 Live Pseudo Color (for color camera)

When you get fluorescence images using color camera, if the unwanted channel was shown because of cross talk, you could remove this channel to take advantage of function of Live Pseudo.
Improvement Function about Fluorescence Microscopy Live Camera Image. (Used function: Live Pseudo Color)
 The extraction of wanted color information from color image (Remove BR on RGB source) These images are shot by JNOPTIC AcquCAM Pro/G3 camera

3-3-2 Live Pseudo Color (for Monochrome camera)

When you get fluorescence images using monochrome camera, you can raise efficiency of acquisition for fluorescence images to add similar false color to the color to be shown on the eyepiece in real time.
Improvement Function about Fluorescence Microscopy Live Monochrome Camera Image. (Used function: Live Pseudo Color)
 Improvement of usage environment for monochrome camera to add false color on the image. These images are shot by JNOPTIC AcquCAM Pro/S3 camera

4. JNO-MHU(Option Unit)

Available measuring height with additional unit, JNO-MHU

※ JNO-MHU is sold separately as optional unit.

Left: Focus on top of sample (Z-axis reset), Right: Focus on bottom of sample (Z-axis height measurement)

 < Measuring condition : over 20x objective, temp 20°C >

Responding Model Measurement value unit Measurable height Error of measuring 1000㎛ Recommended measuring height
CX 41 0.2 ㎛ -9.9 ~ 29.9㎜ Below ±20㎛ Below ± 2000㎛
CKX 41 0.2 ㎛ -9.9 ~ 29.9㎜ Below ±20㎛ Below ± 2000㎛
BX – FM 0.2 ㎛ -9.9 ~ 29.9㎜ Below ±20㎛ Below ± 2000㎛
BX 51/53 0.1 ㎛ -9.9 ~ 29.9㎜ Below ±10㎛ Below ± 1000㎛
MX 51 0.1 ㎛ -9.9 ~ 29.9㎜ Below ±10㎛ Below ± 1000㎛
MX 61L/61 0.1 ㎛ -9.9 ~ 29.9㎜ Below ±10㎛ Below ± 1000㎛



5. Reporting to Excel



Specification

Spec Description
Size 1/1.2 inch
Resolution H: 1920, V: 1200
Pixel size H: 5.86 µm, V: 5.86 µm
Video formats& Frame rate 1920×1200 RGB24@ 54 fps
1920×1200 Y800@ 162 fps
1920×1200 Y16@ 80 fps                             1920×1200 Y411 @ 108 fps
1920×1200 YUY2 @ 81 fps
Dynamic range 8 / 12 bit
Exposure time 20 ㎲ to 30s
Lens mount C/Cs mount
Interface USB 3.0
Power supply 4.5 to 5.5 VDC
Dimensions H: 29 mm, W: 29 mm, L: 43 mm
Mass 65g





More images with AcquCAM 23GR

-> For more details, click here.







AcquCAM 23S2 Images

AcquCAM 23S2



More images with AcquCAM 23S2



Sample : bovine pulmonary artery endothelial cell, BPAEC
Filter Set : JNO-U(L), B(L), G(L)
Camera : AcquCAM 23S2
C-mount adapter : 1X
Lens : UPLNAPO40X
Above three images are merged and processed using ARM S/W



Sample : bovine pulmonary artery endothelial cell, BPAEC
Filter Set : JNO-U(B), B(B), G(B)
Camera : AcquCAM 23S2
C-mount adapter : 1X
Lens : PlanApo60xWLSM
Above three images are merged and processed using ARM S/W





AcquCAM 23S2

AcquCAM 23S2

(Down load Catalog – AcquCAM 23S2)

CA3 pyramidal neuron, IR-DIC & Alexa Fluo 488 at the same time
Figure courtesy by Dr. Sooyun Kim, Seoul National University
with Bx51WI, JNO-DPTS, AcquCAM 23S
JNO-DPTS
CA3 pyramidal neuron, IR-DIC & Alexa Fluo 488 at the same time
Figure courtesy by Dr. Sooyun Kim, Seoul National University
with Bx51WI, JNO-DPTS, AcquCAM 23S
  • USB 3.0 Monochrome Camera
  • 1/1.2 ” Pregius Sensor
  • 1920×1200 pixel
  • Trigger input and I/O
  • Cost-effective mono camera for fluorescence microscope (Best)
  • Cost-effective camera for Department of Physiology (Best)
  • 1/1.2 inch optimized sensor size for microscope field of view
  • Acquire images of optimum width combined with 0.63x adapter

AcquCAM 23S2 mono camera has a USB 3.0 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The mono camera ships with the very sensitive 1/1.2 inch CMOS Pregius  sensor. With up to 162 images per second, the AcuqCAM 23S2 is a low cost, yet highly versatile imaging solution. The camera includes a C to CS mount adapter, making it compatible to C and CS mount lenses.

Images with AcquCAM 23S2
Sample : bovine pulmonary artery endothelial cell, BPAEC
Filter Set : JNO-U(B), B(B), G(B)
Camera : AcquCAM 23S2
C-mount adapter : 1x
Lens : UPlanAPO 40x
Above three images are merged and processed using ARM S/W
Sample : bovine pulmonary artery endothelial cell, BPAEC
Filter Set : JNO-U(B), B(B), G(B)
Camera : AcquCAM 23S2
C-mount adapter : 1x
Lens : UPlanAPO 40x
Above three images are merged and processed using ARM S/W

Specification

SpecDescription
  Size  1/1.2 inch
  Resolution  H: 1920, V: 1200
 Pixel size  H: 5.86 µm, V: 5.86 µm
 Video formats & Frame rate1920×1200  Y16    @    80 fps
1920×1200  Y800 @ 162 fps
  Sensitivity  0.015 lx
  Exposure time  20㎲ to 30 s
  Lens mount  C/Cs mount
  Interface  USB 3.0
  Power supply  4.5 to 5.5 VDC
  Dimensions  H: 29 mm, W: 29 mm, L: 43 mm
  Mass  65 g

ARM

ARM is image analysis software for JNOPTIC AcquCAM cameras. This S/W is interchangeable with all WDM cameras regardless of camera brand and model and even more the most strength point is simple and easy use of length, area, angle, etc.

-> For more details, click here.

More images with AcquCAM 23S2

-> For more details, click here.

AcquCAM 3G Images

AcquCAM 3G



More images with AcquCAM 3G

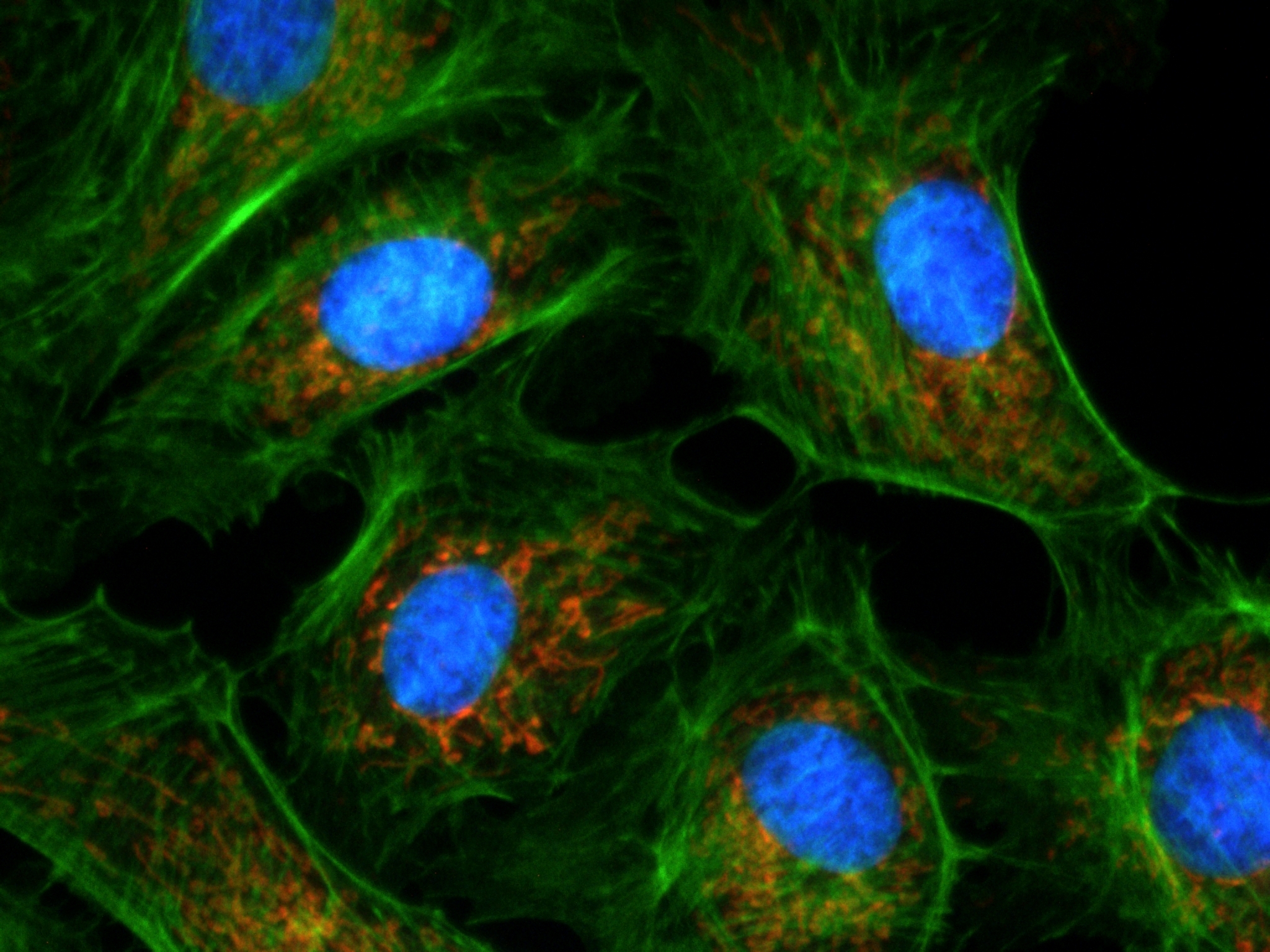

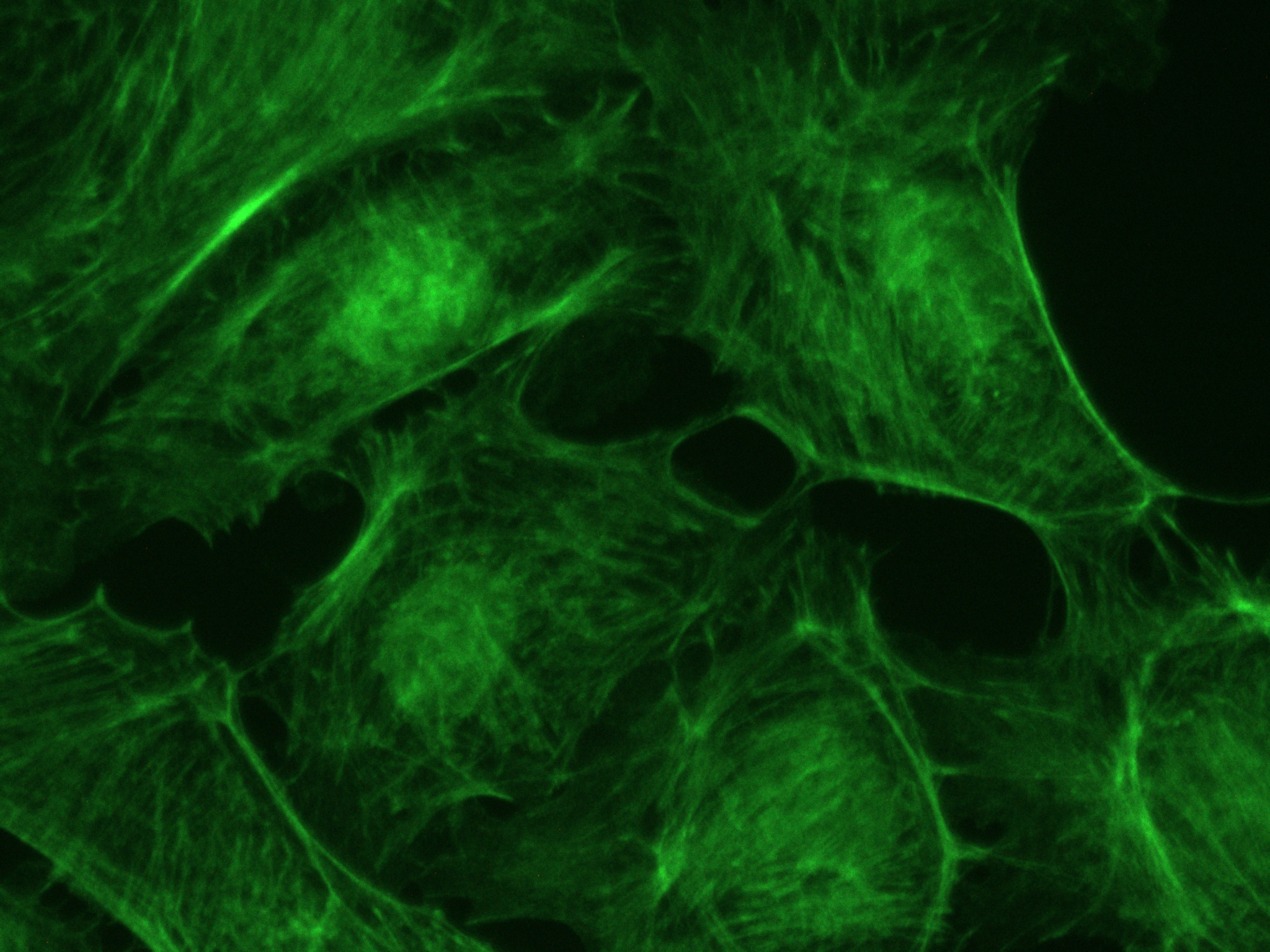

Sample : bovine pulmonary artery endothelial cell, BPAEC
Filter Set : JNO-U(B), B(B), G(B)
Camera : AcquCAM 3G
C-mount adapter : 1X
Lens : PlanApo60xWLSM
Above three images are merged and processed using ARM S/W



Sample : bovine pulmonary artery endothelial cell, BPAEC
Filter Set : JNO-U(L), B(L), G(L)
Camera : AcquCAM 3G
C-mount adapter : 1X
Lens : UPLNAPO40X
Above three images are merged and processed using ARM S/W



AcquCAM 3G

AcquCAM 3G

Down load Catalog – ACQUCAM 3G

  • USB 3.0 Color Camera
  • 1/1.8 ” Pregius Sensor
  • 2048 x 1536 pixel
  • Trigger input and I/O
  • Cost-effective color camera
  • High Sensitivity Sensor
  • Fast, seamless image transfer
  • Available of images with a very wide field of view
  • Low Noise Sensor

AcquCAM 3G color camera has a USB 3.0 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The color camera ships with the very sensitive 1/1.8 inch CMOS Pregius  sensor. With up to 60 images per second, the AcuqCAM 3G is a low cost, yet highly versatile imaging solution. The camera includes a C to CS mount adapter, making it compatible to C and CS mount lenses. Using the optional CS to M12 board lens adapter, the camera is
also compatible to M12 board lenses.

Images with AcquCAM 3G

Sample : bovine pulmonary artery endothelial cell, BPAEC
Filter Set : JNO-U(B), B(B), G(B)
Camera : AcquCAM 3G
C-mount adapter : 1X
Lens : UPLNAPO40X
Above three images are merged and processed using ARM S/W

Specification

Spec Description
Size 1/1.8 inch
Resolution H: 2048, V: 1536
Pixel size H: 3.45 µm, V: 3.45 µm
Video formats& Frame rate 2048×1536 (3.1 MP) RGB64 @ 60 fps

2048×1536 (3.1 MP) RGB32 @ 60 fps
2048×1536 (3.1 MP) Y16 @ 60 fps

2048×1536 (3.1 MP) Y411 @ 60 fps
2048×1536 (3.1 MP) YUY2 @ 60 fps

Dynamic range 8 / 12 bit
Exposure time 20 ㎲ to 30s
Lens mount C/Cs mount
Interface USB 3.0
Power supply 4.5 to 5.5 VDC
Dimensions H: 29 mm, W: 29 mm, L: 43 mm
Mass 65g

ARM

ARM is image analysis software for JNOPTIC AcquCAM cameras. This S/W is interchangeable with all WDM cameras regardless of camera brand and model and even more the most strength point is simple and easy use of length, area, angle, etc.

-> For more details, click here.

More images with AcquCAM 3G

-> For more details, click here.

AcquCAM 5G Images

AcquCAM 5G



More images with AcquCAM 5G

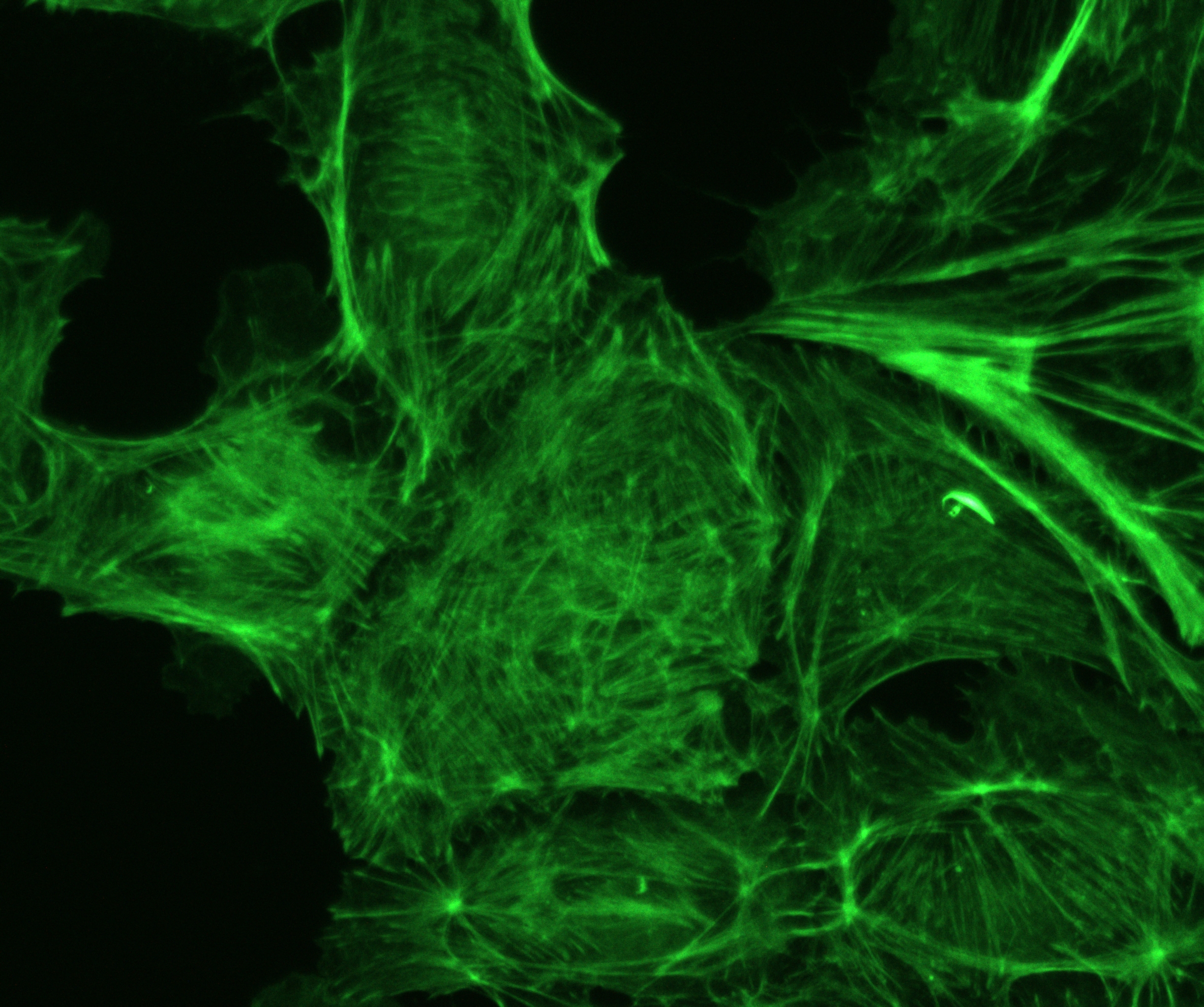

Sample : bovine pulmonary artery endothelial cell, BPAEC
Filter Set : JNO-U(B), B(B), G(B)
Camera : AcquCAM 5G
C-mount adapter : 1X
Lens : PlanApo60xWLSM
Above three images are merged and processed using ARM S/W

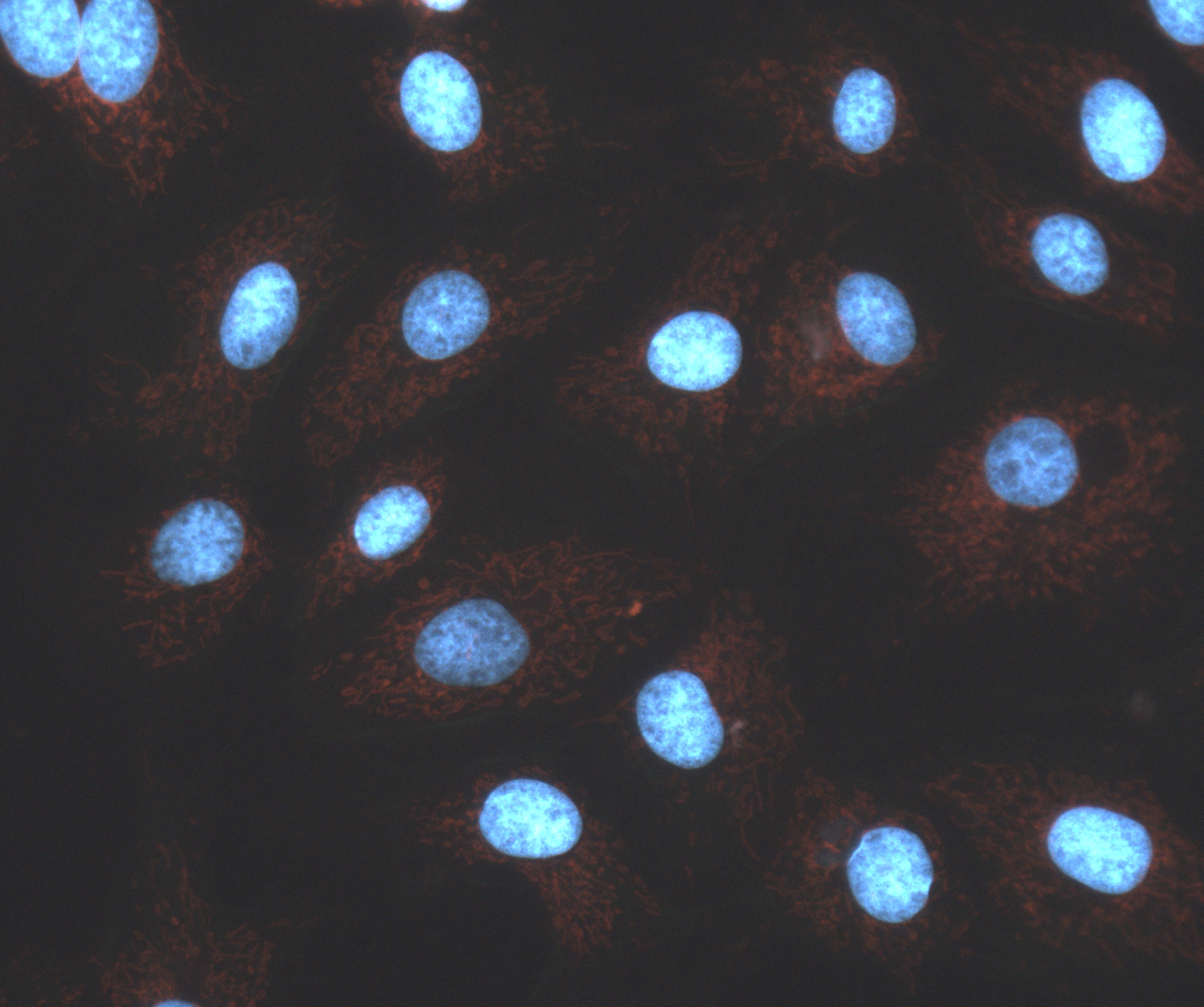

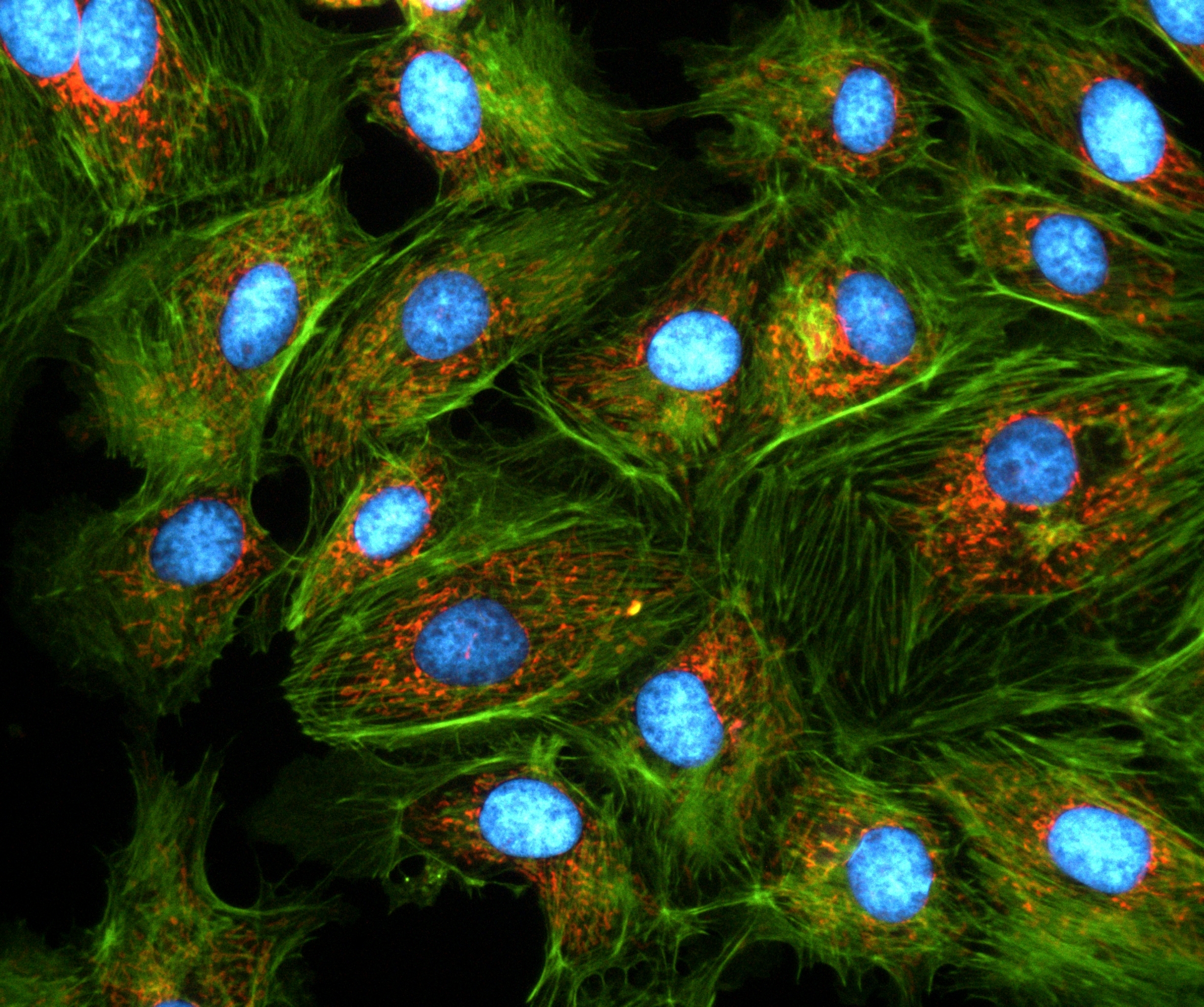

Sample : bovine pulmonary artery endothelial cell, BPAEC
Filter Set : JNO-U(L), B(L), G(L)
Camera : AcquCAM 5G
C-mount adapter : 1X
Lens : UPLNAPO40X
Above three images are merged and processed using ARM S/W





AcquCAM 23GR2 Images

AcquCAM 23GR2



More images with AcquCAM 23GR2



Sample : bovine pulmonary artery endothelial cell, BPAEC
Filter Set : JNO-U(L), B(L), G(L)
Camera : AcquCAM 23GR2
C-mount adapter : 1X
Lens : UPLNAPO40X
Above three images are merged and processed using ARM S/W

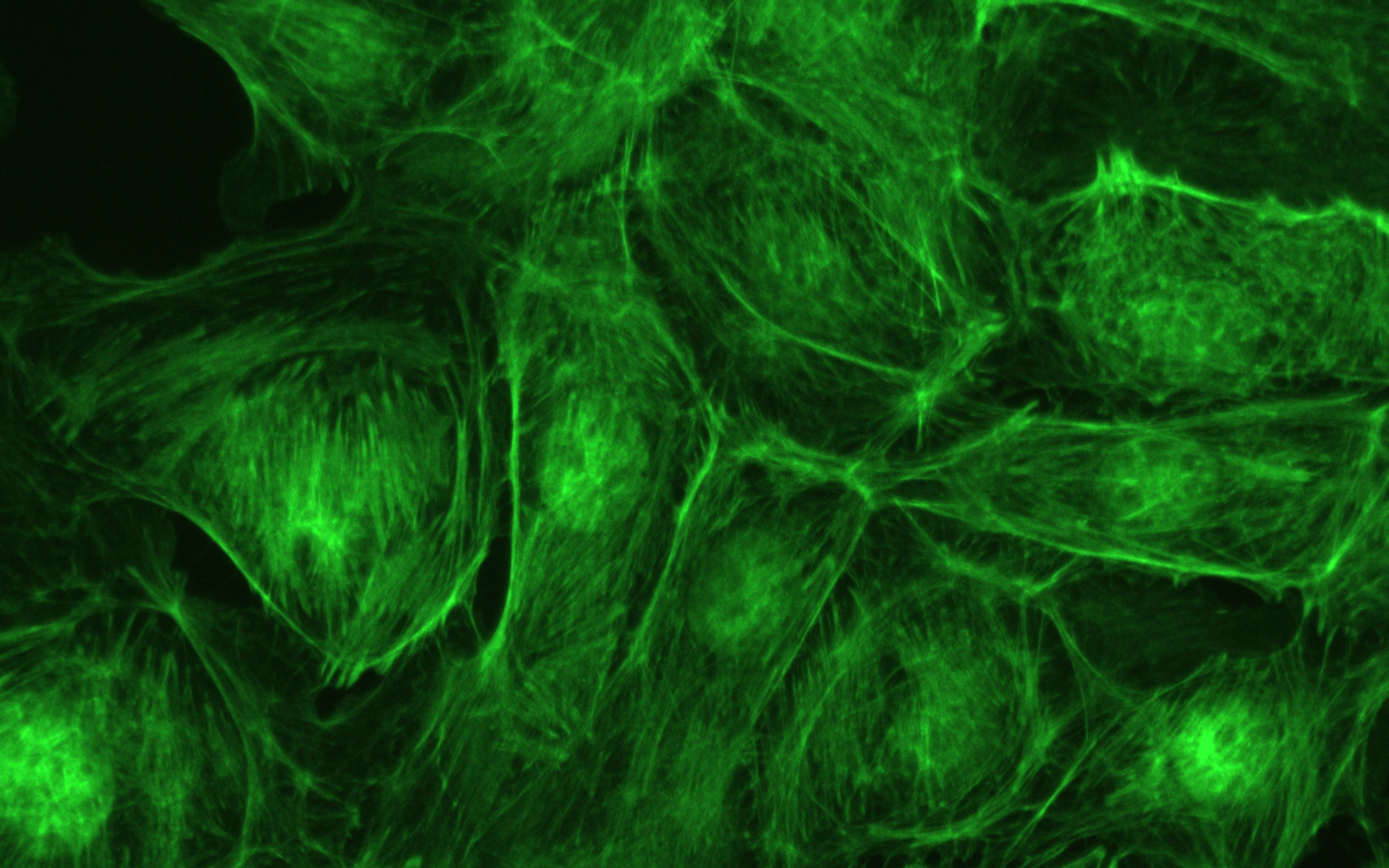

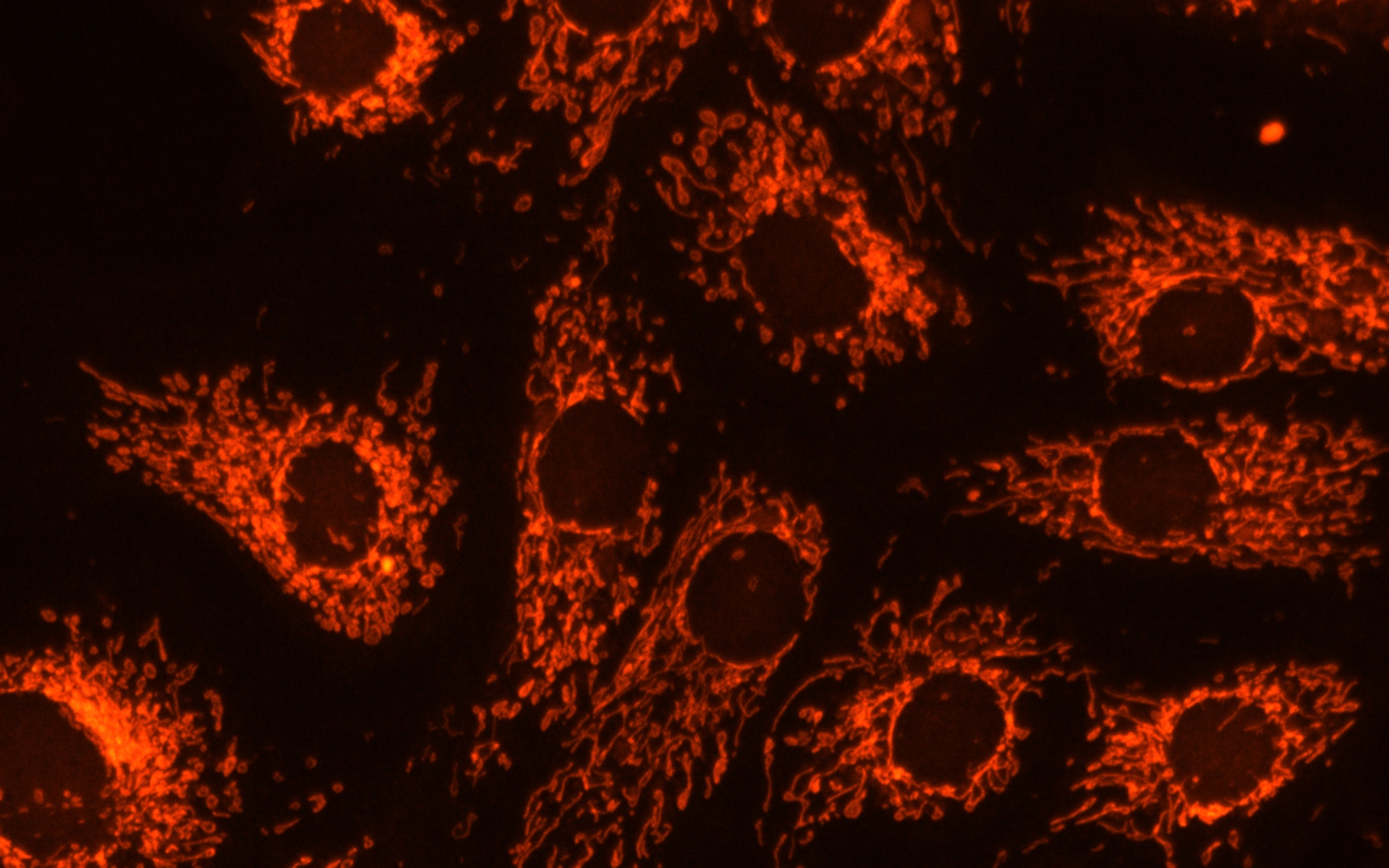

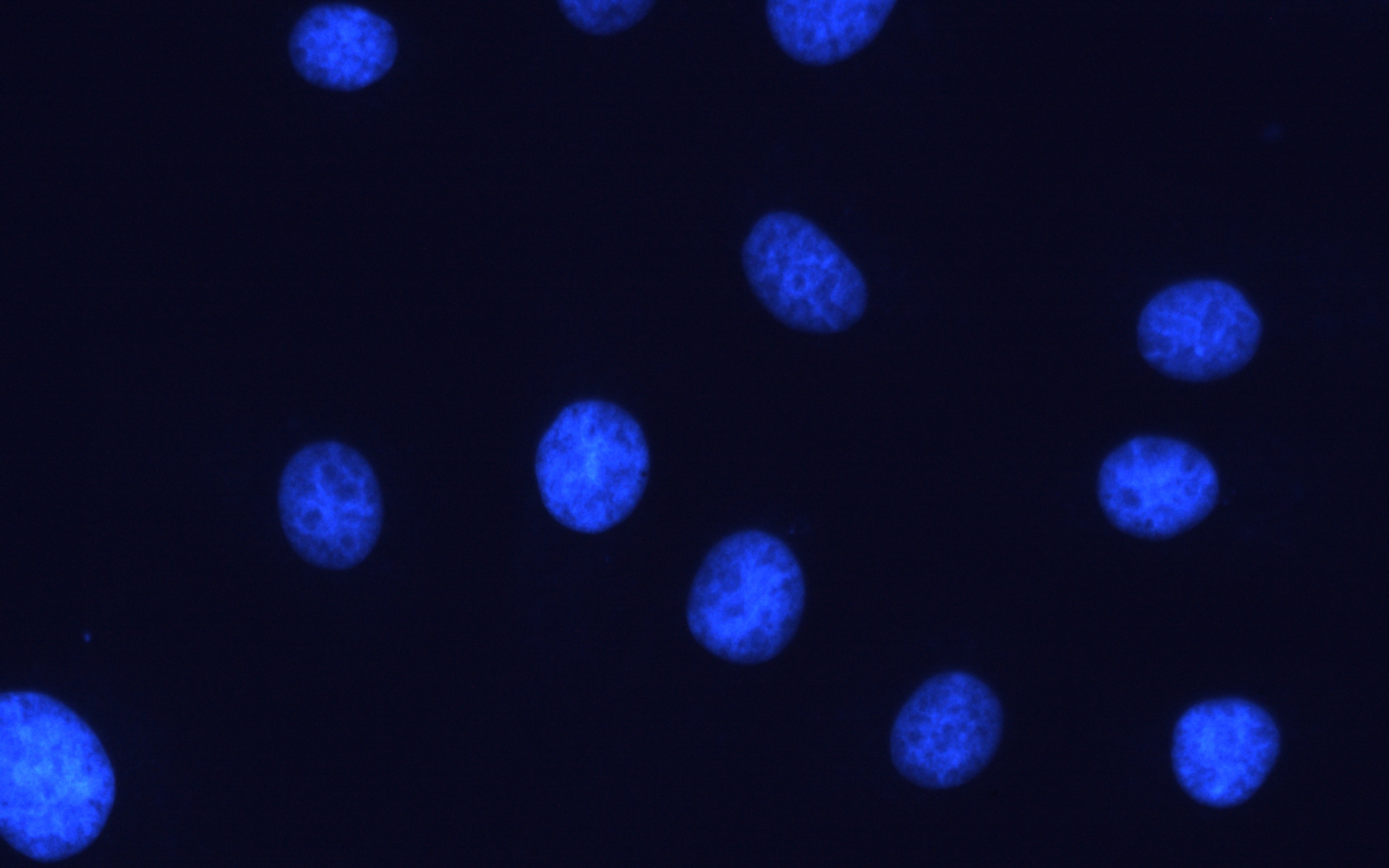

Sample : bovine pulmonary artery endothelial cell, BPAEC
Filter Set : JNO-U(B), B(B), G(B)
Camera : AcquCAM 23GR2
C-mount adapter : 1X
Lens : PlanApo60xWLSM
Above three images are merged and processed using ARM S/W
