JNOPTIC Filter 49015
Download Catalog_49015

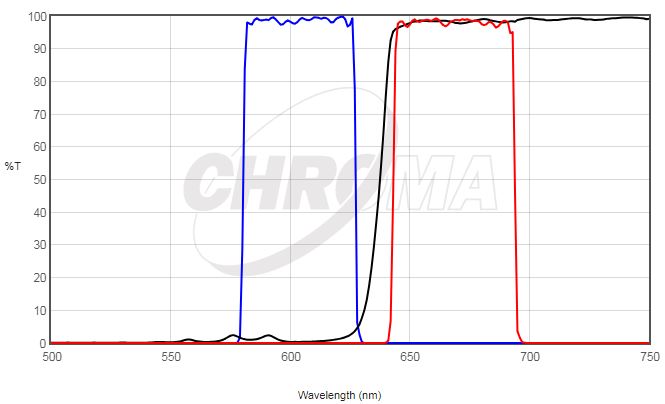

49015 Spectrum
| Filters | Type |
| ET605/50x | EX |
| T635lpxr | BS |
| ET670/50m | EM |
– Filter set for Alexa Fluor 633
- Main Fluorochromes : AlexaFluor 633
| Excitation (㎚) | Emission (㎚) |
| 632 | 647 |

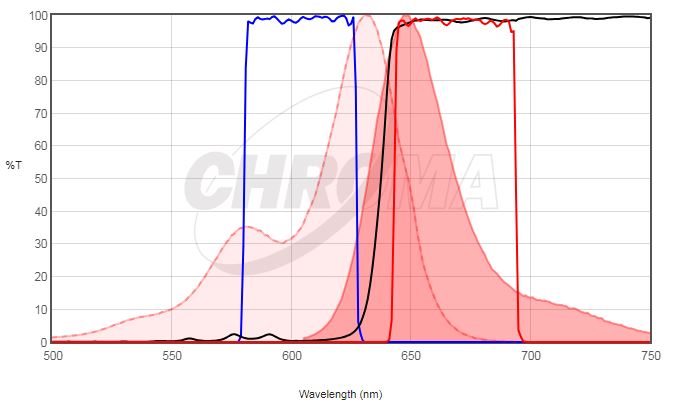

Spectrum Comparison Fluor and 49015
Best with these fluorochromes
- Alexa Fluor 633™
- Allophycocyanin (APC)
- Atto 633
- CAL Fluor® Red 635
- DyLight 633
49015 Spec
- Typical Application(s) : Widefield Microscopy
- Coating : Sputter/Hard Coated
- Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter
- Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes
