JNOPTIC Filter  JNO-U(B)

Download Catalog _ JNO-U(B)

– Filter set for DAPI / Hoechst / AlexaFluor350
– Chroma Filter Model No. : 39000

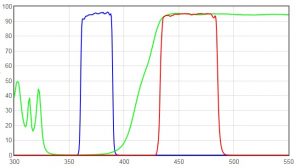

JNO-U(B) Spectrum

Filters Type
 AT375/28x EX
AT415DC BS
 AT460/50m EM

주요 형광 색소(Fluorochromes)와 스펙트럼 비교

* DAPI VS JNO-U(B)

DAPI VS JNO-U(B)

* Hoechst VS JNO-U(B)

JNO-U(B) VS Hoechst

 * AlexaFluor350 VS JNO-U(B)

JNO-U(B) VS AF350

JNO-U(B)필터를 이용한 Sample Image 촬영

Filter Set : JNO-U(B)
Camera : AcquCAM 23GR2
C-mount adapter : 0.5x
Lense : UPLAPO20X
Sample : bovine pulmonary artery endothelial cell, BPAEC
Filter Set : JNO-U(B)
Camera : AcquCAM 3G
C-mount adapter : 0.5x
Lense : UPLAPO20X
Sample : bovine pulmonary artery endothelial cell, BPAEC
Filter Set : JNO-U(B)
Camera : AcquCAM 3G
C-mount adapter : 0.5x
Lense : UPLAPO20X
Sample : bovine pulmonary artery endothelial cell, BPAEC

JNO-U(B) 필터에 적합한 형광색소


JNO-U(B) Spec

  • Typical Application(s) : Widefield Microscopy
  • Coating : Sputter/Hard Coated
  • Round excitation and emission filters mounted in anodized aluminum rings 2.3mm thick, up to 25mm in diameter (for standard sizes)
  • Rectangular dichroics up to 26x38mm, 1mm thick, to fit standard microscope manufacturer filter cubes (for standard sizes)

*** For filters larger than 25mm and dichroics larger than 26x38mm, please contact us for pricing.
